Structural Analysis - II (3150614) MCQs

MCQs of Structure subjected to Moving loads (ILD for statically determinate & Indeterminate Beams)

Showing 1 to 10 out of 25 Questions
1 2 3
1.
Muller Breslau’s principle gives a quantitative analysis of indeterminate structures.
(a) True
(b) False
Answer:

Option (b)

2.

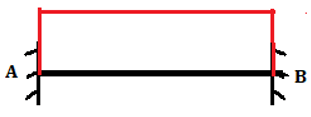

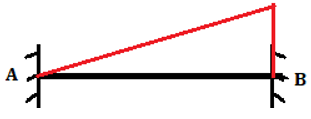

Which one the following is the ILD for the vertical reaction at A for the given fixed beam?



(a)


(b)


(c)


(d)


Answer:

Option (d)

3.
Which one the following is the ILD for the bending moment at section C for the given fixed beam?



(a)


(b)


(c)


(d)


Answer:

Option (d)

4.

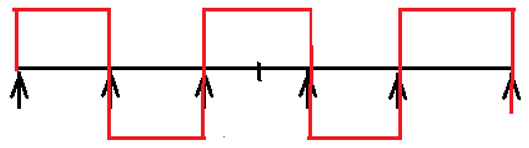

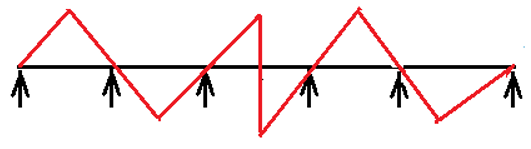

ILD for the shear force at section C for the continuous beam is ____



(a)


(b)


(c)


(d)


Answer:

Option (b)

5.

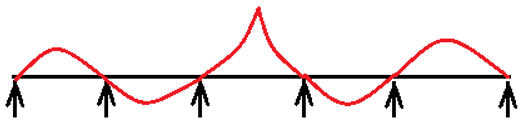

ILD for the bending moment at section C for the continuous beam is _______



(a)


(b)


(c)


(d)


Answer:

Option (d)

6.
In BMD and SFD :-
(a) Points remain fixed, position of load changes
(b) Points change, position of loads remain fixed
(c) Both of them changes
(d) Neither of them changes
Answer:

Option (b)

7.
In influence line diagrams (ILD) :-
(a) Points remain fixed, position of load changes
(b) Points change, position of loads remain fixed
(c) Both of them changes
(d) Neither of them changes
Answer:

Option (a)

8.
For drawing ILD, what value of test load is assumed?
(a) 1 unit
(b) Arbitrary
(c) Depends upon structure
(d) Zero
Answer:

Option (a)

9.
ILD of statically determinate beams consists of curve as well as straight lines. State whether the above statement is true or false.
(a) True
(b) False
Answer:

Option (b)

10.
Maximum point of ILD always lies at the point at which load is applied. State whether the above statement is true or false.
(a) True
(b) False
Answer:

Option (b)
